Ref. V 94 16 35 TH

Overview

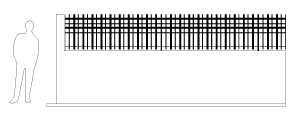

Ref. V 94 16 35 TH

Distance between axes: 104 x 84 mm
Flat bar: 35 x 4 / 16 X 6 mm

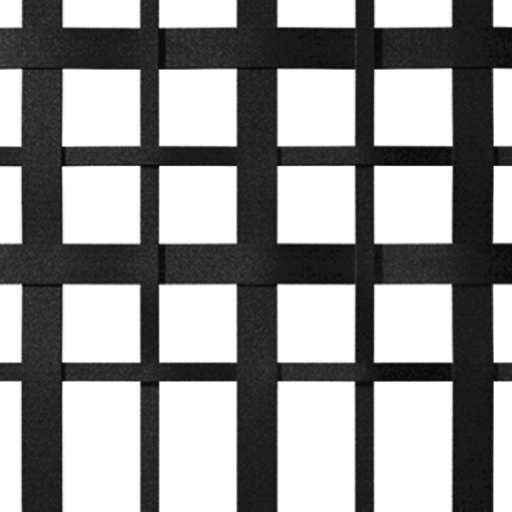

Mesh

Standard sizes

TPR System (See the section: "Technical Data")

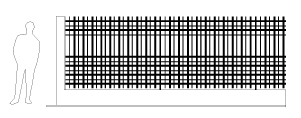

TPR X V 94 16 35 TH / 2x0,75 m

TPR La V 94 16 35 TH / 2x1,5 m

TME System (See the section: "Technical Data")

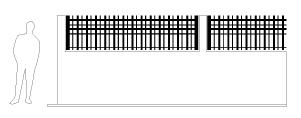

TME EC V 94 16 35 TH / 3x0,75 m

TME EA V 94 16 35 TH / 3x1,5 m

Technical data


TPR Sytem

Continuous fencing with metallic posts.
Different models of plaited grille providing a great capacity or adaptation to the design of the building work. It provides different solutions to solve steps, curves, slopes. There are different anchorage systems available too. Two sorts of metallic links are available.

Sizes of the modules

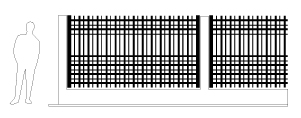

1-1. Standard.
fastener by means of screws with
security caps

1-2. Optional.
fastener by means of adjustable clamps

Types of the modules

Types of the modules
Types of posts

Types of posts
Types of anchorage.


Types of anchorage.
Available for all the kinds of posts.



TME System

Fencing between pilasters.
It is presented as modules with loose ends and hidden reinforcement. They are fixed to the pilasters by means of abutments made of cast iron providing a system of adjustment.

Sizes of the modules

Fastening by means of cast iron abutments

Materials and finishings


Materials

All the materials are solid hot rolled profiles of ACERO CALIDAD S-275-JR UNE-EN 10025.

Corrosion-resistant treatment and finishes

Channel of fluids
Inner galvanization of the overlapped surfaces.

Treatment
Dúplex system according to the standard UNE-EN 13438.
High anti-oxidation protection thanks to a process of hot dip galvanization. Treatments of degreasing and phosphate. Polyester-powder paint (ferrotextured paint) and furnace dried. Maximum adherence of the surface coating.

-Corrosion-resistance treatment: Hot dip galvanization by immersion.
     · Minimum thickness of the zinc coating: 70 µm.
     · Standard UNE-EN ISO 1461

-Adherence treatment: Acid degreasing. Amorphous phosphate.

-Surface treatment: Polyester-powder paint (>70 µm). High quality and optimum performance.



Ferro textured polyester in six colours: white, ferrite, red tile, green, steel grey and black wrought iron.

Options and Accessories


For any inquiry about options and formats, contact our Customer Care centre: 902 114 142 / 980 509 219
