Distance between axes: 68 x 68 mm
Flat bar: 30 x 4 mm
Free opening: 38 x 38 mm
Transparency: 31%

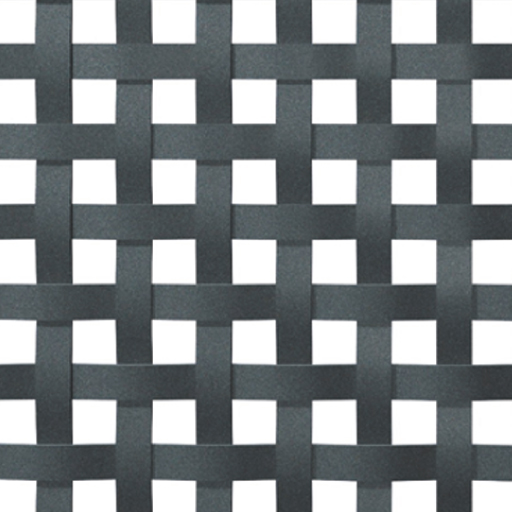

Mesh

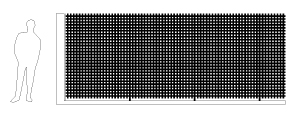

TPR X 68 30 4 / 2x0,75 m

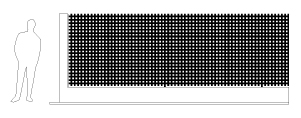

TPR La 68 30 4 / 2x1,5 m
TPR Lv 68 30 4 / 1,5x2 m

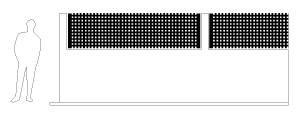

TME EC 68 30 4 / 3x0,75 m

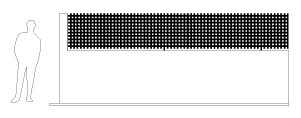

TME EA 68 30 4 / 3x1,5 m
Continuous fencing with metallic posts.
Different models of plaited grille providing a great capacity or adaptation to the design of the building work. It provides different solutions to solve steps, curves, slopes. There are different anchorage systems available too. Two sorts of metallic links are available.
Sizes of the modules
1-1. Standard.
|
1-2. Optional.
|
Types of the modules |
Types of the modules |
Types of posts |
Types of posts |
Types of anchorage. |
Types of anchorage. Available for all the kinds of posts. |

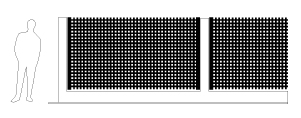

Fencing between pilasters.
It is presented as modules with loose ends and hidden reinforcement. They are fixed to the pilasters by means of abutments made of cast iron providing a system of adjustment.
Sizes of the modules
Fastening by means of cast iron abutments |
All the materials are solid hot rolled profiles of ACERO CALIDAD S-275-JR UNE-EN 10025.
Channel of fluids
Inner galvanization of the overlapped surfaces.
Treatment
Dúplex system according to the standard UNE-EN 13438.
High anti-oxidation protection thanks to a process of hot dip galvanization. Treatments of degreasing and phosphate. Polyester-powder paint (ferrotextured paint) and furnace dried. Maximum adherence of the surface coating.
-Corrosion-resistance treatment: Hot dip galvanization by immersion.
· Minimum thickness of the zinc coating: 70 µm.
· Standard UNE-EN ISO 1461
-Adherence treatment: Acid degreasing. Amorphous phosphate.
-Surface treatment: Polyester-powder paint (>70 µm). High quality and optimum performance.
Ferro textured polyester in six colours: white, ferrite, red tile, green, steel grey and black wrought iron.
For any inquiry about options and formats, contact our Customer Care centre: 902 114 142 / 980 509 219
